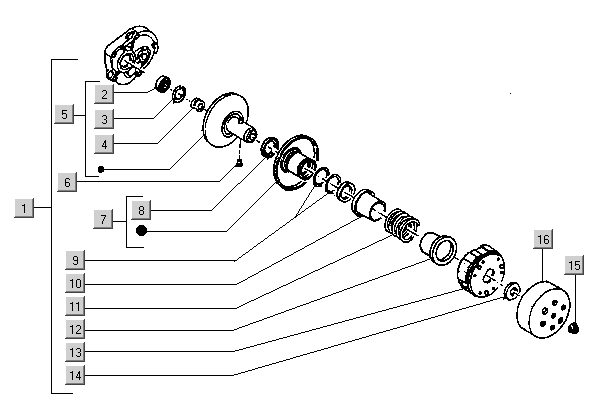

Coupling Gilera DNA 50 2T E1 2000-2001 (EMEA)
- 1. Coupling complete Ø134 Piaggio NRG Power 50 2t 2004-2018 Ø107 (NG)
- 2. Lower
- 3. Circlip for securities (24x25.8x1.2)
- 4. Needle bearing 310-8079 coupling at the rear
- 5. Poeliehelft fixed Ø134 Piaggio Liberty 50-100 2T-4T 1998-2022
- 6. Guide Pen Coupling AR. C13-C25-C27-C28
- 7. Poelie half variable Ø134 Piaggio Liberty 50-100 2T-4T 1998-2022
- 8. Turn ring 39x34x3 AR.
- 9. O-Ring 40x2 coupling AR. C02-C25/4T-C28
- 10. Protective bus Q = 60/43-32 C02-C14-C18-C25
- 11. Coupling pressure spring C19-C25-C27 D = 57-120
- 12. Protective bus AR. CLUTCH C19-C25-C32
- 13. Linking Piaggio NRG Power 50 2T 2004-2018 Ø107
- 14. Moer coupling Piaggio 50 2T-4T/ 125-150 LEM/ IGET 4T (M28X1)
- 15. Moer Transmission Piaggio 50-100 2T-4T (M10x1.25)
- 16. Coupling house Piaggio ZIP 50 2T-4T 1995-2015 Ø107
